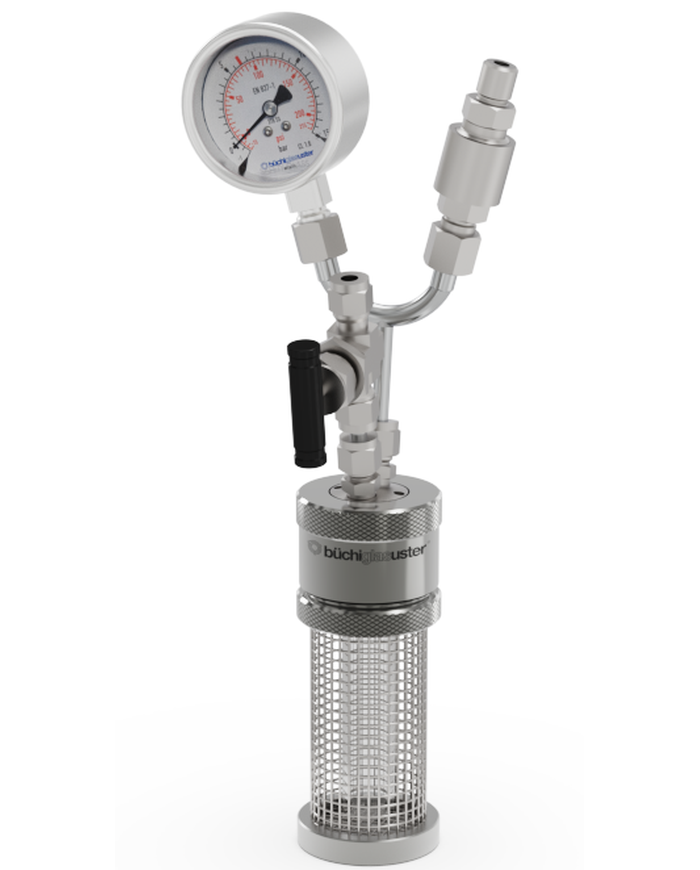

tinyclave - piccolo reattore a pressione

Reattore a pressione da laboratorio

Reattore: da 10 a 25 ml
Pressione: da -1 (FV) a +10 / 100 bar
Temperatura: da -20 °C a +200 / 300 °C
Materiale: Vetro borosilicate 3.3, acciaio, Hastelloy® , PTFE

Disponibile anche in altri materiali, range di pressione & temperatura.

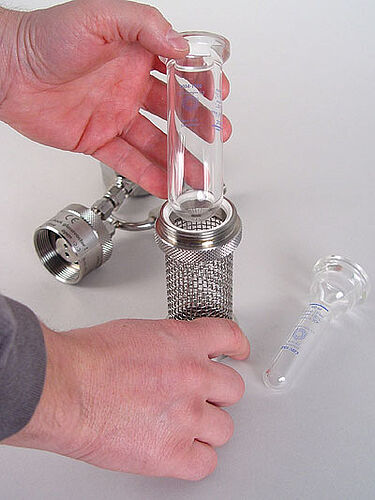

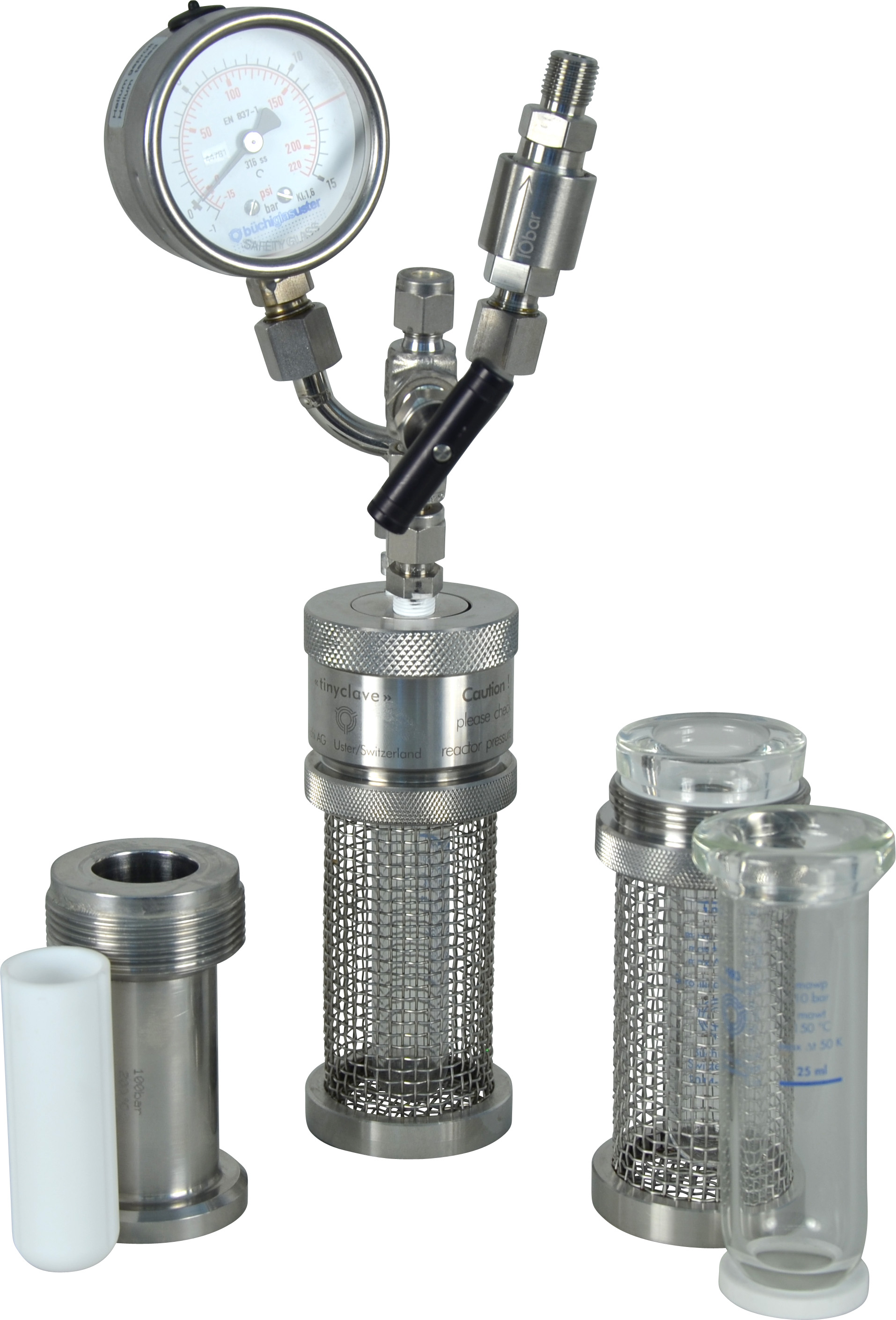

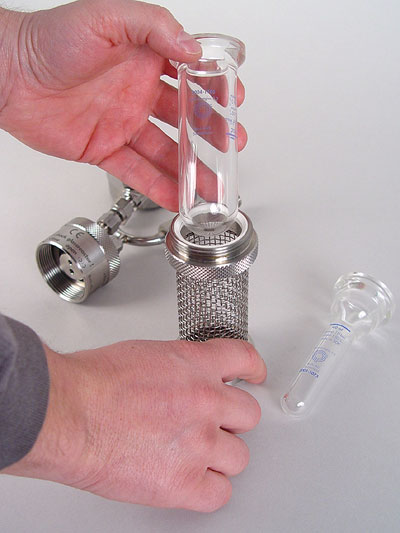

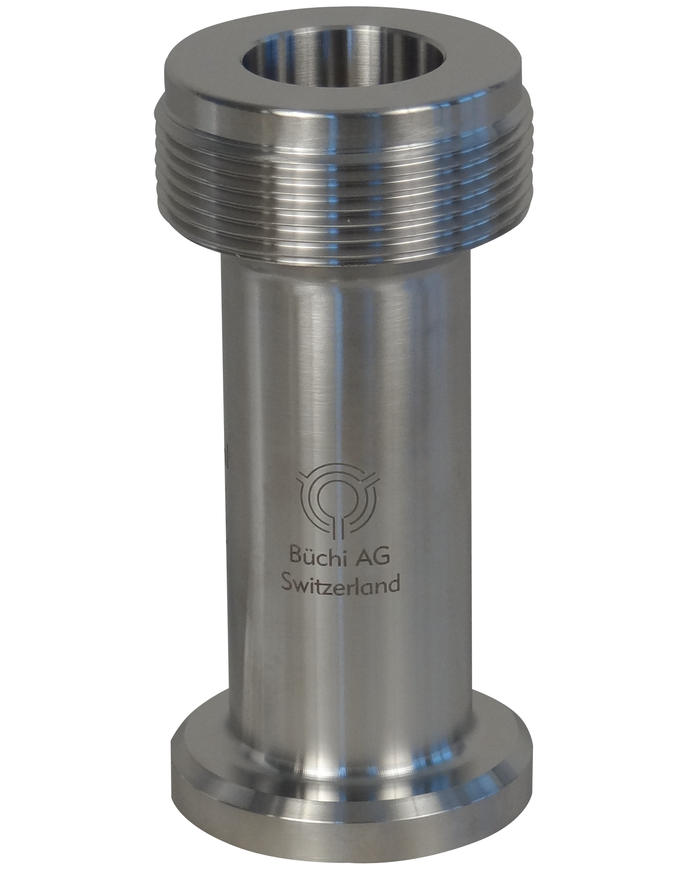

Questo sistema di reazione a pressione è progettato per l'utilizzo di recipienti a pressione intercambiabili in vetro, acciaio, Hastelloy o Teflon.
Le sue caratteristiche di sicurezza garantiscono reazioni sicure in pressione.


I reattori in vetro garantiscono un'elevata resistenza agli acidi, consentendo allo stesso tempo un controllo ed il monitoraggio visivo del processo. E’ disponibile una vasta gamma di accessori – non esitate a contattarci per definire la  configurazione più adatta alle vostre esigenze specifiche

Fornitura standard

  • Supporto del recipiente con rete di protezione

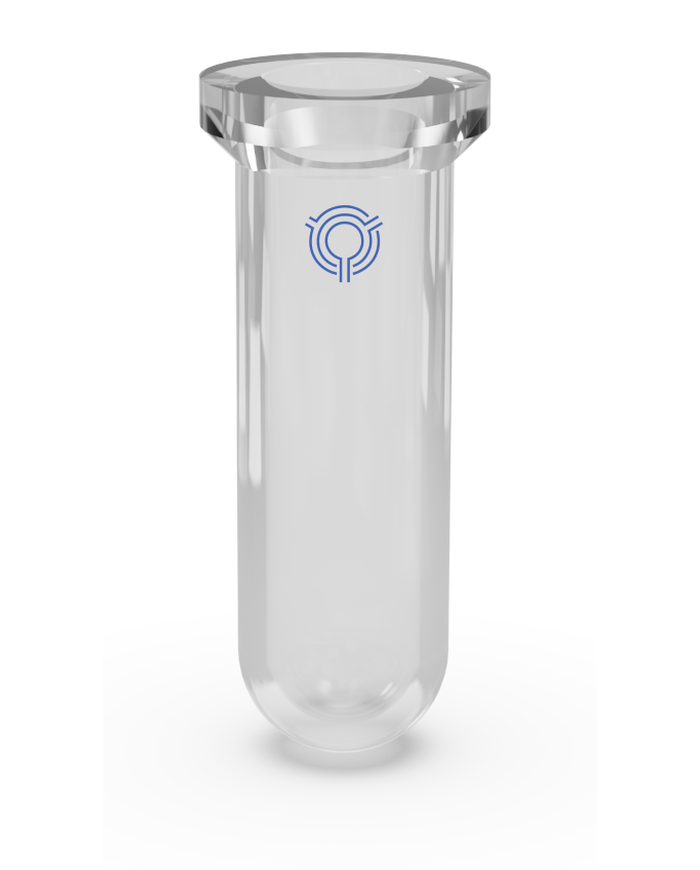

  • Reattore a pressione in vetro
  • Dado di chiusura

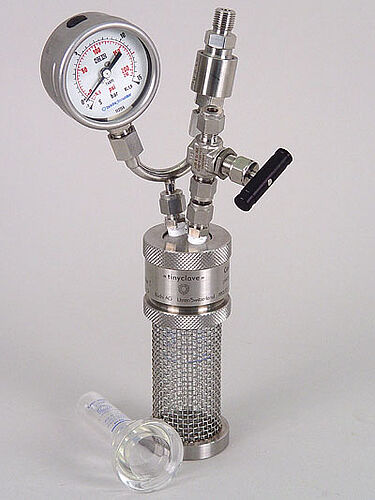

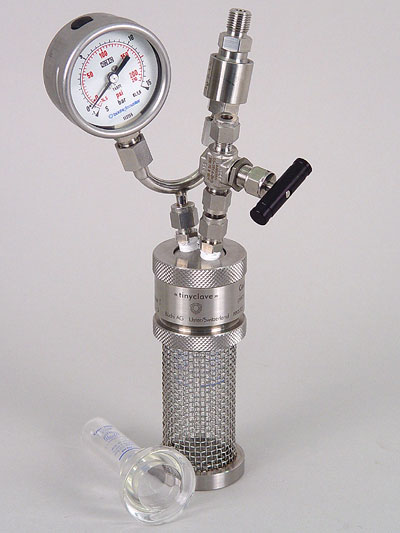

  • Testata con 2 fori e accessori standard:
  • Raccordi swagelok® con disco di rottura, manometro e 1 valvola
  • Attrezzi e accessori var

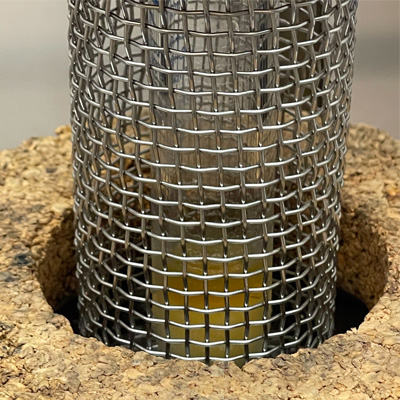

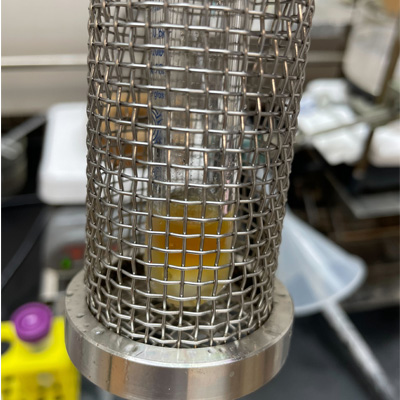

Esempi

References

"We are extremely pleased with our experience using Buchi equipment for our laboratory needs. Our project required precise control of volume, pressure, and temperature, and Buchi provided custom-made solutions that perfectly fit our requirements.

The availability of glass pressure vessels was a standout feature, allowing us to visually monitor our polymerization reactions without venting the system. The equipment’s compatibility  with standard laboratory hot plates and fume hoods made integration seamless, and the 10 ml, 35 ml, and  100 ml vessels have been invaluable for scaling up our reactions.

The equipment’s reliability, ease of use, and mention in peer-reviewed publications gave us confidence in our  decision to choose Buchi. Their solutions, including Swagelok® fittings, offered exceptional customization. The  assembly process was straightforward, and the system's excellent sealing has supported oxygen-sensitive  reactions effortlessly. The cooperation with Buchi and their local team partner was outstanding.

Their responsiveness and  willingness to listen to our specific needs set them apart. We feel assured by the safety features, such as the  steel mesh containment and compatibility with blast shields. Overall, we highly recommend Buchi for their  innovative, high-quality equipment and excellent customer service."
Haosheng Feng / MIT Massachusetts Institute of Technology


Applicazioni tipiche

  • Reattore idrogenazione
  • Reattore polimerizzazione
  • Reattore di sintesi
  • Test / valutazione catalizzatore
  • Reattore catalitico
  • Cristallizzazione
  • Ricerca chimica
  • Ricerca petrolchimica
  • Ricerca biopolimeri
  • Sintesi nanoparticelle
